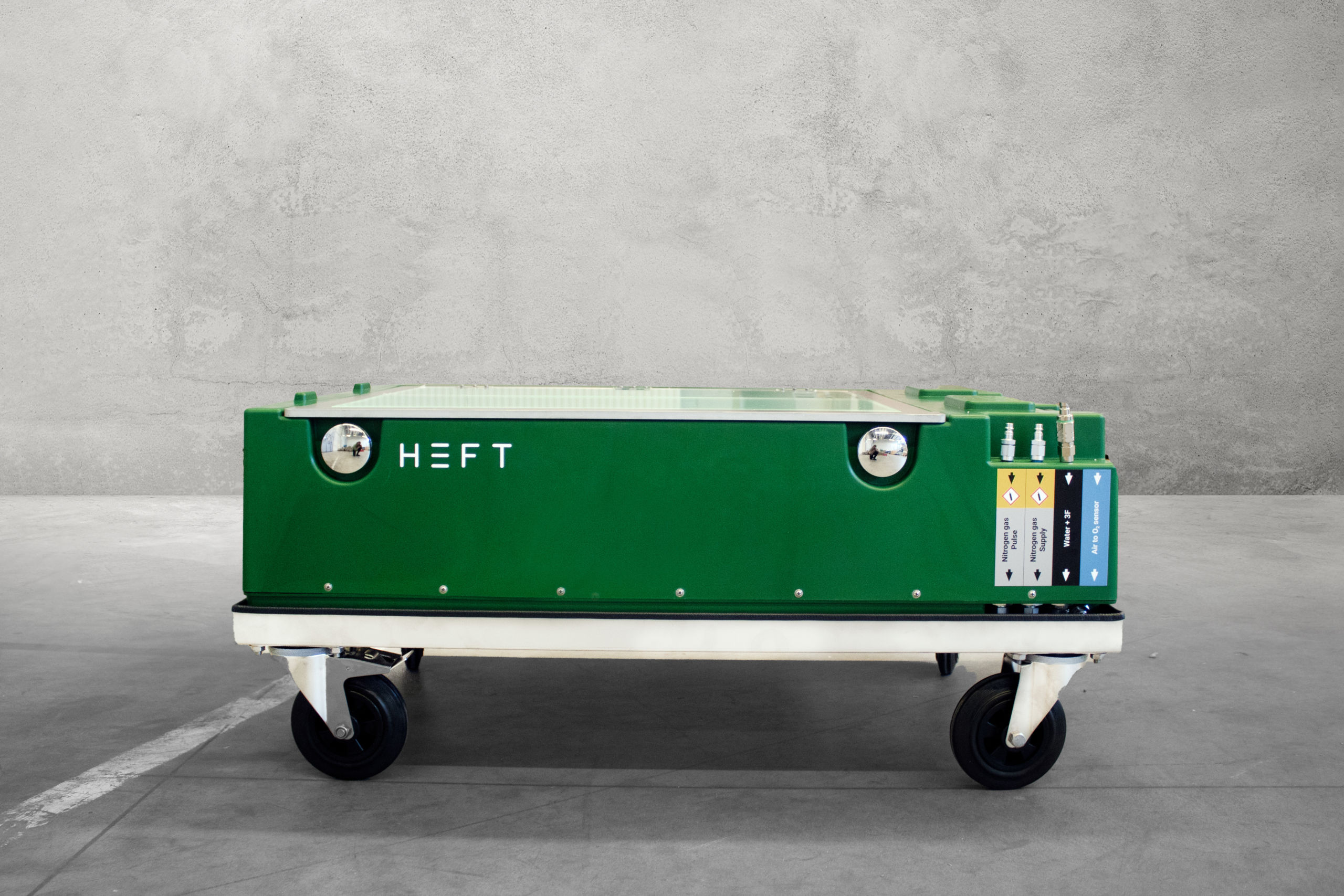

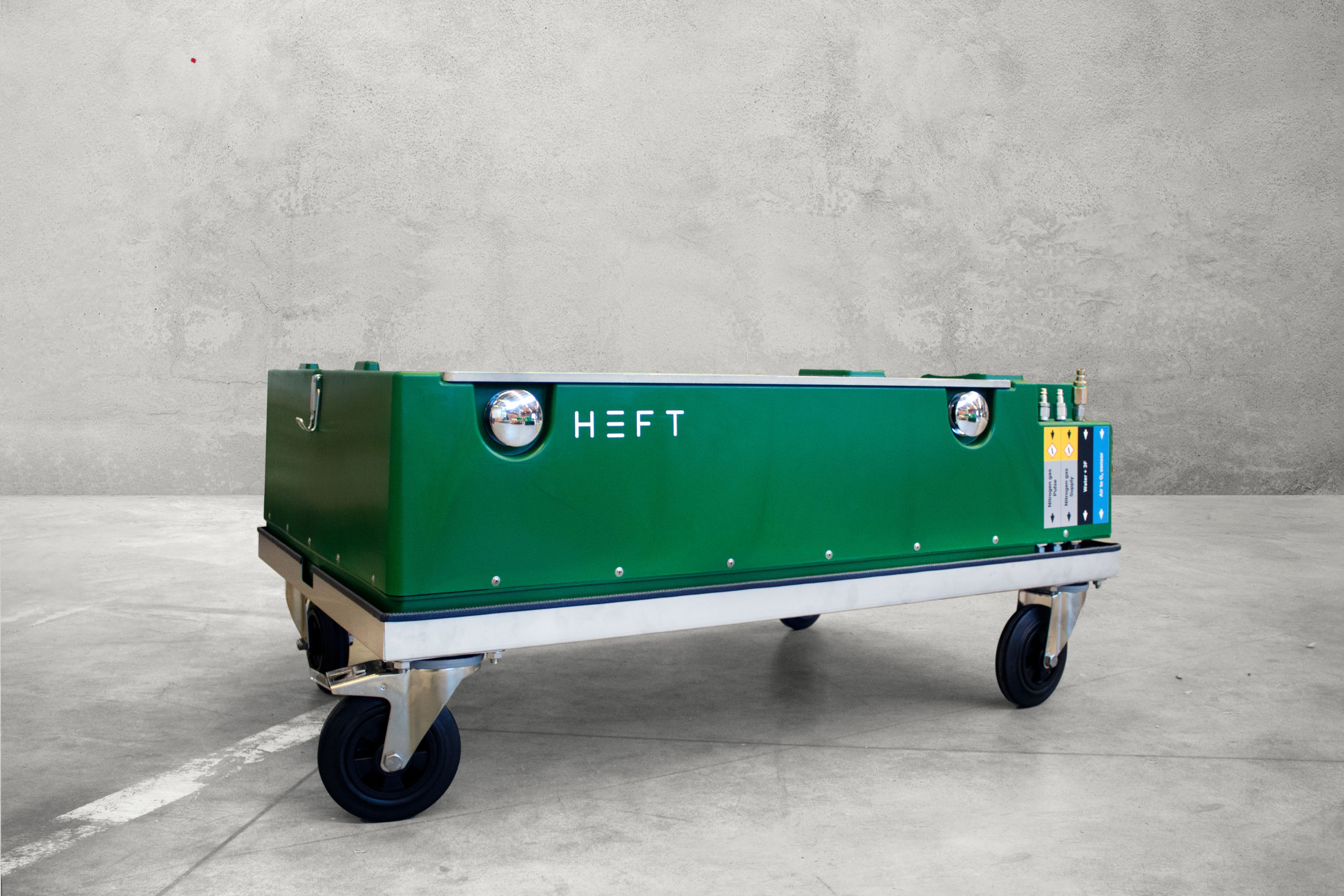

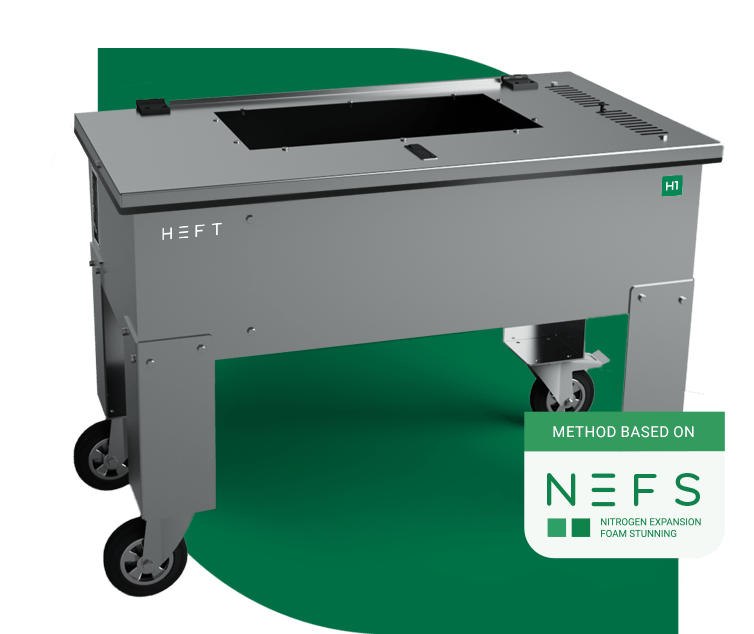

About the H1

System for the daily euthanasia routine.

On-site systems for smaller animals, such as piglets and poultry. Ready to use with an easily operated semi-automatic process for individual and group applications. To be used as a more humane first-response method with a consistent outcome that the operator can rely on.

How it works.

STEP 1

The animal is placed in the container and the lid is closed

STEP 2

The foam production is started by pressing the button on the control cabinet, the foam contains 100% nitrogen

STEP 3

The button is pressed again to break the foam. An anoxic atmosphere with less than 2% oxygen is created

STEP 4

Within a few breaths, the lack of oxygen to the brain will result in loss of posture and consciousness with less stress and pain

STEP 5

To guarantee effective euthanasia, the animal need to remain in the closed anoxic atmosphere for 5 min

STEP 1

The animal is placed in the container and the lid is closed

STEP 2

The foam production is started by pressing the button on the control cabinet, the foam contains 100% nitrogen

STEP 3

The button is pressed again to break the foam. An anoxic atmosphere with less than 2% oxygen is created

STEP 4

Within a few breaths, the lack of oxygen to the brain will result in loss of posture and consciousness with less stress and pain

STEP 5

To guarantee effective euthanasia, the animal need to remain in the closed anoxic atmosphere for 5 min

Key points.

For more information about the H1, download the product sheet.

Operator friendly

Designed to be easily operated and safe to use

Management by DS1

The system is run by an easily operated control unit

Consistent

Semi-automatic process guaranteeing that the same result is always achieved.

Made in Sweden

Made by carefully chosen materials with focus on quality and practicality

Scalable

If more loading capacity is required an additional tier can be added

Efficient consumption

The HEFT system requires 3-4 times less gas compared to flushing and very low amounts of foam agent per use.

Model name

H1

Size

L x W x H 1173 x 593 x 859 mm

Animal area

L x W x H 876 x 546 x 334 mm

Usage certification

HEFT on farm euthanasia

Control unit

DS1

Filling time (technical filling time without animals)

7 seconds (May vary with animals depending on size and movements)

Gas consumption

1700 L/min

Foam consumption

0,1 L/min

Water

1,9 L/min

About the DS1

The Docking Station.

DS1 is the docking station for controlling and distributing power, nitrogen, and foam agent into the application. The connections and the fitting tubes are color-marked for easy assembly.

The DS1 is delivered with a rack for convenient and safe storage. The rack is mobile to enable the DS1 to be stored away when not used or moved to different places.

Download the product sheet
